Sked Rescue Hauler
01 Overview

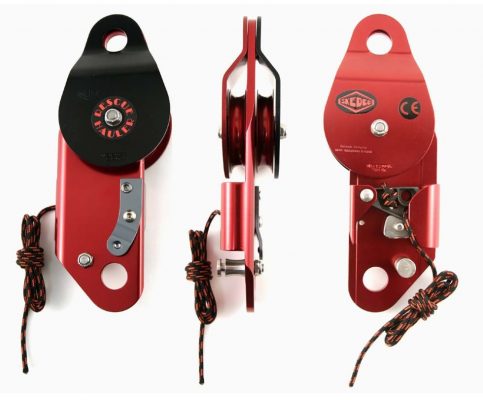

Sked Rescue Hauler 4:1 Pulley Device SK-710
This rope device combines a 7.5cm double pulley with a cam. The rope can only move in one direction once the cam is engaged.
The Sked Rescue Hauler allows you to raise a load by pulling on the tail end of the rope, releasing it to move your grip along the rope.
The cam can be released manually by pulling on the attached cord. This allows the load to be lowered.
The cam is guaranteed for life.
All parts are visible providing minimal maintenance and easy inspection.
The pulley sheaves, body of the rescue hauler and matching pulley are anodized. They will meet a 200 hour salt spray test.
The Sked Rescue Hauler accommodates rope sizes from 10mm to 12.5mm.
Max recommended load at the cam is 1045kgs. Minimum break strength when in use is 5455kgs
When used with a separate double pulley it gives a 4:1 mechanical advantage
02 Key Features
The Sked Rescue Hauler combines a 7.5cm pulley with a cam
Accommodates rope sizes from 10mm to 12.5mm
Maximum recommended load is 1045 kgs
Minimum break strength when in use is 5455 kgs.
Pulley sheaves, body of the rescue hauler and matching pulley will pass a 200 hour salt spray test.
When used with a separate double pulley it provides a 4:1 mechanical advantage
Options available:
SK-710 Skedco Rescue hauler
SK-711 Skedco 7.5 cms double pulley w/o becket
SK-712 Skedco 7.5cms double pulley with becket
