Medevac4 Folding Stretcher

01 Overview

The MedEvac 4 combat stretcher is the ultimate rescue stretcher for the combat medic core. Folds in fours, light weight with extremely high tensile strength. Able to deploy quickly and efficiently on the battlefield.

Super Compact

The Med Evac4 is a lightweight folding stretcher that folds into four segments. Only 20.8” (52cm) when folded, it is short enough to fit comfortably on your back, while not protruding above shoulder level. It allows for complete freedom of motion - helmets won’t knock into it even if when the neck twists. No worries about getting hung up on low openings or presenting a high profile target to enemy fire; as long as the shoulders are out of sight, the Med Evac4 is out of sight.

Lightweight

The MedEvac4 weights only 6.1kg (13.42lbs). It opens fast and easily (within 6 seconds). Just snap it open and its patented joint configuration automatically locks in place. No need to waste precious seconds fiddling with locking mechanisms as with other folding stretchers. Once it opens, it stays open - no chance of accidents - the automatic locking joints guarantee it. Refolding is just as fast - only seven seconds.

Not just for military

All the characteristics that make the MedEvac4 the ideal battlefield stretcher also make it perfect for a wide range of civilian rescue and evacuation operations. Fire fighting, helicopter evacuation, ski patrol, wilderness expeditions, camping, etc. The MedEvac4 is the best stretcher for the job; lightweight, portable, easy to use and reliable.

The MedEvac4 tactical stretcher is the best stretcher for the job; lightweight, portable, easy to use and reliable.

Rugged and reliable simplicity

The MedEvac4’s revolutionary joint configuration eliminates the need for springs and complicated locking mechanisms. With only 3 folding joints on either side, the MedEvac4 opens and closes using natural motions. It doesn’t take a genius to use the MedEvac4, only to design it. The poles are tested to take 570Kgs of stress without signs of material fatigue.

Easy transportation and storage

The MedEvac4's small folded volume and light weight means more beds can be stowed in tight places. That's important in evacuation carriers such as helicopters, where space and weight is at a premium.

Built from ALTRUNIUM™

The MedEvac4 Tactical Stretcher is built using ALTRUNIUM® – an extremely stable molecular structure formulated by our team of experienced metallurgist.

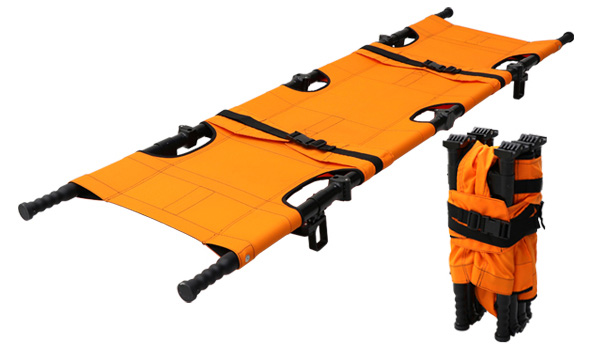

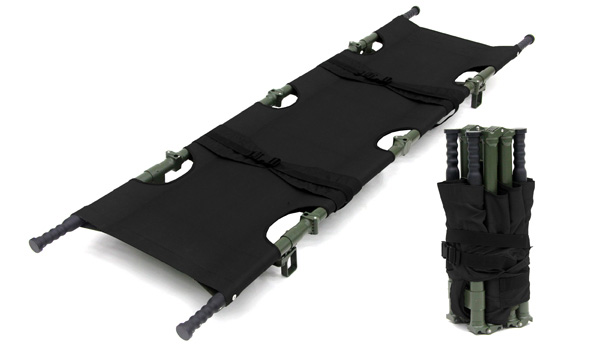

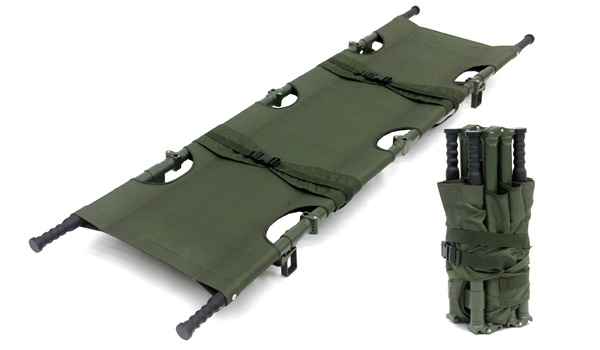

02 Available Colours

03 Specifications

Technical information

Dimension (Deploy) Approximately 2150mm x 565mm x 100mm
Dimension (Folded) Approximately 547mm x 216mm x 190mm
Weight Approximately 6.5kg
Frame material Altrunium® with powder coating finish
Patient restraints Built-in patient restraints with buckle
IV pole attachment point 6 slots for our tactical adjustable IV pole
Crossbar support Reinforced ring made from Altrunium®
Handle type Grooved to human hand tactical black
Payload 570kg
Mid-point deflection (95kg load) Less than 2cm
Ground clearance 10cm
Static load Over 750kg
Dynamic presses Over 50,000 repetitions with 250kg presses
Leg crossbar Altrunium® crossbar with powder coating finish and support strap to prevent collapsing.

Canvas information

Canvas type Heavy Duty Laminated PVC, waterproof
Weight 240gsm
Warp Min. 2400N / 50mm
Weft Min. 1400N / 50mm

* Specifications are subject to change without prior notice.
